Sunshades

View Sunshade Types
Sunshades are growing more popular in new building design due to their aesthetic quality and sun-limiting functionality. Ametco® offers quality architectural Sunshades in galvanized steel and aluminum bar grille design, extruded aluminum tubing design, steel and aluminum louver design and perforated aluminum design.
Sunshades designs allow varying amounts of light to penetrate into the building, and custom fabrication is available. Aluminum and galvanized steel Sunshades are powder coated in one of 15 color choices for durability and appearance. All of Ametco’s sunshades are designed as specified by ASCE 7-10.

Basic Wind Speed:   115 mph (for Structural Importance Factor II(1.0)

Structural Importance Factor: II(1.0)(failure presents a potential hazard to Human life)

Ground Snow Load: 25 psf. (The leeward drift loading must be investigated for buildings greater than 40’-0" wide)

Atmospheric Ice: ¾" thick @ 40 mph wind speed

The maximum standard panel lengths will range from 60" to 144" depending on Sunshade type, with the maximum length illustrated on the concept drawings. The maximum panel depth will be 3'0" to 4'0" again dependent on Sunshade style.


Galvanized Steel & Aluminum Bar Grille Sunshades are manufactured from 2" x 3/16" bars on 1-3/16" centers.

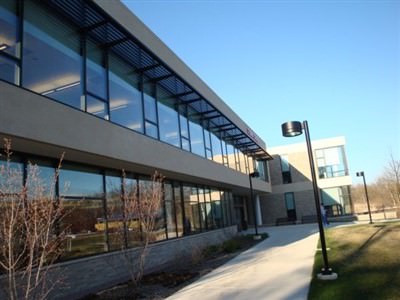

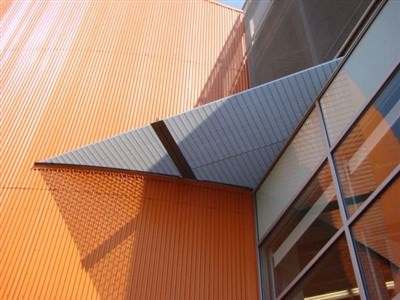

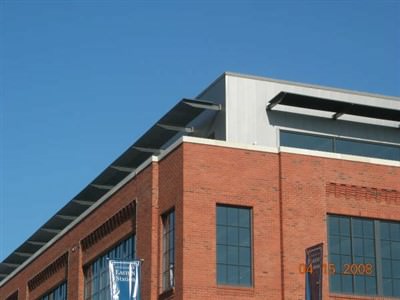

Extruded Aluminum Sunshades are available in four styles, and are fabricated from aluminum extrusions. Each aluminum sunshade is manufactured to order.

Fixed Louver Sunshades can be fabricated in steel, aluminum or stainless steel and provide 80% & 100% direct visual screening. Aluminum Louver Sunshades are manufactured from heavy-duty aluminum extrusions for strength and visual appeal.

Perforated Aluminum Sunshades begin with 1/8" thick aluminum sheet that provide from 10% to 50% open air. There are numerous patterns and styles of perforations to choose from.

Made In USA

View Ametco's 20 Year Warranty

Bookmark and Share
Downloads
Many of Ametco's architectural products can help builders qualify for LEED green building credits.
AMETCO'S FENCE PRODUCTS, GATE PRODUCTS RAILINGS, SUNSHADES, PERFORATED METAL
Perforated Metal (606.58 KB)
8 page pdf of perforated fencing, gates, railing and sunshades in steel, aluminum and stainless steel
4-page PDF of bar grille, extruded aluminum, louver and perforated sunshades including CAD drawings and photos.
Master Spec For Perforated metal being used as Sunshade, Railing infill panels and fencing
 Master Spec for metal Sunshades

Sunshades
Galvanized steel and aluminum bar grille sunshades
Four styles available in aluminum
Louver Sunshade in Steel, Aluminum, and Stainless Steel
1/8" thick aluminum or galvanized steel with 10 to 50% open area. There are numerous patterns and styles of perforations to choose from.
