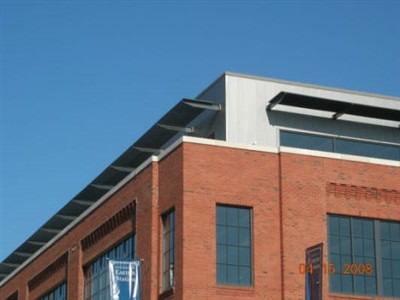

Aluminum Sunshades

View Infill Panel Designs


Four styles of Aluminum Sunshades.

All Aluminum Sunshades are manufactured to order from extruded aluminum tubing. The Sunshades are then powder coated for lasting beauty. Ametco® certifies that its Sunshades system is free from defects in material and workmanship. The polyester coated metal is guaranteed not to crack, peel or blister for a period of 20 years. Accidental damages, defects resulting from improper installation and damage from vandalism or abuse are not included. Warranty is limited to a prorated value of the coating, not to exceed the original value of the coating. Styles at left are designed with the depth and spacing of the tube required to achieve 60 degrees incident angle  of sunshade.

Style 102-45    2" x 1/2" Aluminum Extrusions on 2-3/16" Centers

Style 102-90     2" x 1/2" Aluminum Extrusions on 1-3/8" Centers

Style 104-45    4" x 1/2" Aluminum Extrusions on 4-7/16" Centers

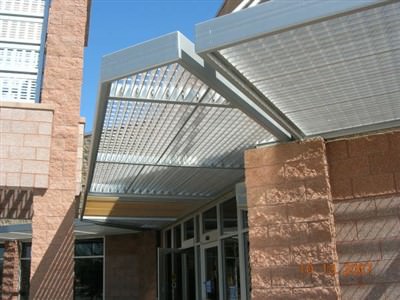

Style 104-90    4" x 1/2" Aluminum Extrusions on 2-1/2" Centers






Made In USA

View Ametco's 20 Year Warranty

Bookmark and Share
CAD Drawings
Please click on thumbnail below to load a larger image:
SUNSHADE 102-45 SUNSHADE 102-45
SUNSHADE 102-90 SUNSHADE 102-90
SUNSHADE 104-45 SUNSHADE 104-45
SUNSHADE 104-90 SUNSHADE 104-90
Channel Frame for Bar Grille & Fixed Louver Support Rod COnnection Channel Frame for Bar Grille & Fixed Louver Support Rod COnnection
Sunshade Hardware - Intermediate Outrigger for Structural Column or Concrete Wall Sunshade Hardware - Intermediate Outrigger for Structural Column or Concrete Wall
Sunshade Hardware - Intermediate Outrigger for Curtain Wall Mounting Sunshade Hardware - Intermediate Outrigger for Curtain Wall Mounting
Support Rod Connection Support Rod Connection
Suspended Rod Connection Suspended Rod Connection
Downloads
Many of Ametco's Fencing and Gate System products can help builders qualify for LEED green building credits.
4-page PDF of bar grille, extruded aluminum, louver and perforated sunshades including CAD drawings and photos.
 Master Spec for metal Sunshade

Panel Designs
2" x 1/2" tube on 2-3/16" Centers
2" x 1/2" aluminum extrusion on 1-3/8" Centers
4" x 1/2" Aluminum Extrusions on 4-7/16" Centers
4" x 1/2" Aluminum Extrusions on 2-1/2" Centers
