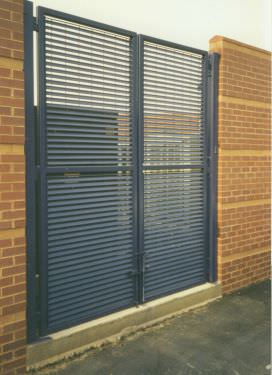

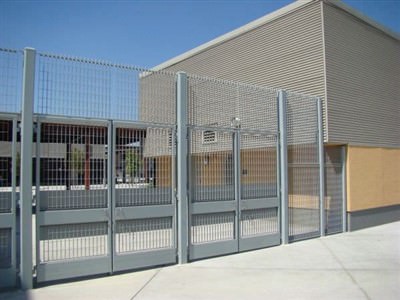

 Ametco’s  Swing Gate System is a tube design frame, which can be infilled with one of Ametco’s steel tube designs, steel security fencing, aluminum or stainless steel fixed louver design or steel welded wire panels. The swing gates tube design can also be furnished in aluminum or stainless steel. Ametco Swing Gates are protected by an extremely effective coating system, giving long life with a touch of elegance. The steel swing gate frames and infill panels are controlled hot dip galvanized and then coated with thermo hardening powders, which gives Ametco swing gates protection from the elements as well as increasing its sturdiness and eliminating maintenance. The aluminum and stainless infills are coated with the same thermohardening powders as the steel, but where hot dip galvainizing may leave some drips and rough surface areas, the aluminum and stainless is a much smoother surface. The color gives an extra touch of appeal to the gate, harmonizing with its surroundings. Once you have selected the color from the wide range of choices available, it will endure exposure without crazing or fading.

Infill Panels

The following panel designs are common for this type of application. Hover over the panel to view more information about the design.


CAD Drawings

Ametco provides CAD drawings in various formats to add to your project spec. Click the name or icon of the desired format to download.

To view a larger version of the thumbnail image, click the magnifying glass after hovering over the image.

Blockade

Blockade

DWG DWF PDF VWX SketchUp

Typical Pedestrian Single Swing Gate

Typical Pedestrian Single Swing Gate

DWG DWF PDF VWX

Typical Pedestrian Double Swing Gate

Typical Pedestrian Double Swing Gate

DWG DWF PDF VWX

Typical Large Double Swing Gate

Typical Large Double Swing Gate

DWG DWF PDF VWX SketchUp

Padlockable Cane Bolt

Padlockable Cane Bolt

PDF

Swing gate Padlockable Slide Bolt

Swing gate Padlockable Slide Bolt

DWG DWF PDF VWX

Steel Hinges - Light Duty

Steel Hinges - Light Duty

DWG DWF PDF VWX

Steel Hinges - Heavy Duty

Steel Hinges - Heavy Duty

DWG DWF PDF VWX
