The industry's largest selection of architectural electro-forge welded security grilles.  All of our grilles are polyester powder coated in one of our 15 standard colors.

The steel security grilles are available in 7 standard mesh styles steel grilles and 2 standard aluminum grilles or can be fabricated to fit your needs. All steel security grilles are hot-dip galvanized then powder coated. This combination gives you the best protection and allows you to choose from Ametco’s 15 standard colors.

Steel Design Bar size (A) Mesh (B)
Grotto 1" × 5⁄64" 1-21⁄32" × 5-3⁄16"
Shield 1" × 5⁄64"  1-21⁄32" × 1-3⁄4"
Metro 1" × 1⁄8" 2-7⁄16" × 5-3⁄16"
Blockade 1-3⁄16" × 5⁄32" 2-7⁄16" × 5-3⁄16"
Lattice 1" × 1⁄8" 2-7⁄16" × 2-19⁄32"
Stadium 1" × 1⁄8" 3-15⁄16" × 3-15⁄16"




Infill Panels

The following panel designs are common for this type of application. Hover over the panel to view more information about the design.

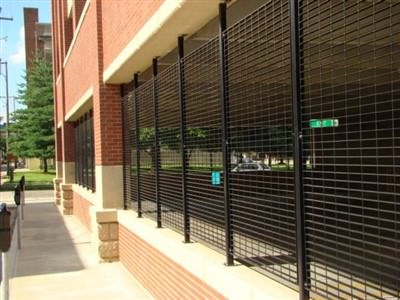

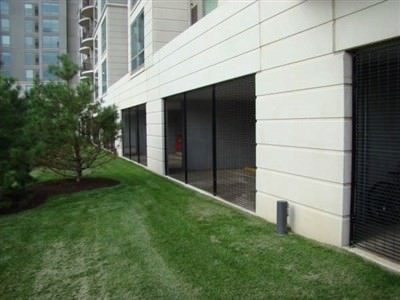

Grotto

Grotto

Grotto Design steel security grilles are 1-21/32" x 5-3/16" mesh with 1" x 5/64" main bar and 3/16" round cross bar

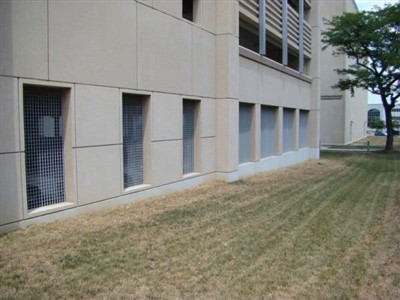

Lattice

Lattice

2-7/16" x 2-19/32" mesh, 1" x 1/8" main bar, 3/16" round cross bar, galvanized and powder coated

Shield

Shield

Steel fence with 1-21/32" x 1-3/4" square mesh, 1" x 5/64" main bar and 3/16" round cross bar, galvanized and powder coated

Stadium

Stadium

Stadium Design steel security grilles are 3-15/16" x 3-15/16" mesh with 1" x 1/8" main bar and 3/16" round cross bar


CAD Drawings

Ametco provides CAD drawings in various formats to add to your project spec. Click the name or icon of the desired format to download.

To view a larger version of the thumbnail image, click the magnifying glass after hovering over the image.

Stadium Design

Stadium Design

DWG DWF PDF VWX

Metro Design

Metro Design

DWG DWF PDF VWX

Grotto Design

Grotto Design

DWG DWF PDF VWX

SHIELD DESIGN

SHIELD DESIGN

DWG DWF PDF VWX

Lattice Design

Lattice Design

DWG DWF PDF VWX

Blockade

Blockade

DWG DWF PDF VWX SketchUp
