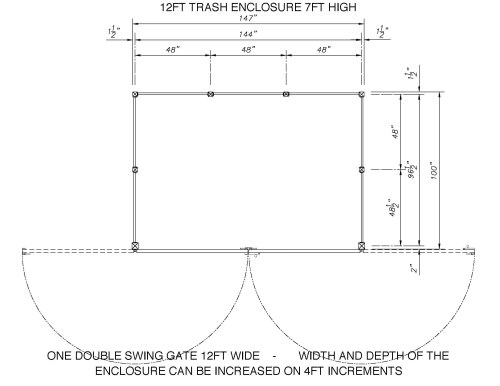

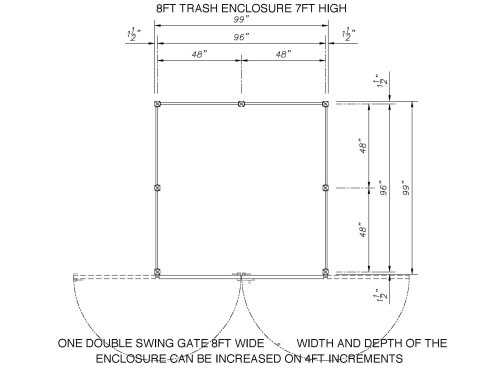

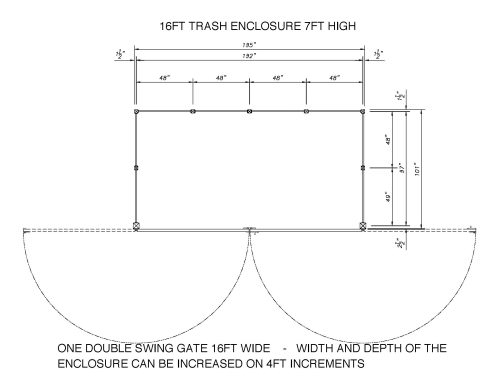

Ametco Manufacturing Corporation has in stock Shadow 100 Design fixed louver galvanized carbon steel Trash Enclosures. All enclosures are 7ft high with double swing gates, 8ft, 12ft, or 16ft wide. The enclosure can be any width and depth on 4ft increments. There is also in stock 4ft pedestrian gates that will fit into any 4ft section of the enclosure. Enclosures can be 1, 2, 3 or 4 sided depending on your requirement. All parts are fabricated and stocked in galvanized carbon steel for shipment in one week. If you would like powder coating to one of Ametco’s 15 standard colors allow 3 weeks for shipment.
PART LIST
4FT WIDE PANEL X 7 FT HIGH (2 PCS.)
3" X 3" X 1/4" TUBE POST 10 FT LONG
4" x 4" x 3/8" TUBE POST 10 FT LONG
5" X 5" X 3/8" TUBE POST 10 FT LONG
4FT SINGLE SWING PEDESTRIAN GATE
8 FT. WIDE X 7 FT. DOUBLE SWING GATE WITH POSTS
12 FT WIDE X 7 FT HIGH DOUBLE SWING GATE WITH POSTS
16FT WIDE X 7 FT HIGH DOUBLE SWING GATE WITH POSTS
Infill Panels
The following panel designs are common for this type of application. Hover over the panel to view more information about the design.
To go to a page with all the details of the panel, click the name of the panel above the Sweets Tag (shown upon hovering)
Eclipse
Eclipse panel design provides 80% or 100% direct visual screening.
Sweets ProductTAG
