Ametco® has the industry's largest selection of architectural grilles and screens. From electro-forge welded steel grilles to extruded aluminum louvers, Ametco® will meet your project's needs. Most of our grilles and screens are polyester powder coated in one of our 15 standard colors.
Grilles are available in seven standard mesh styles and can be custom fabricated to fit your needs. All grilles are hot dip galvanized and then powder coated. This combination gives our grilles the best protection from the elements and allows you to choose from Ametco's 15 standard colors.
Design Bar size (A) Mesh (B)

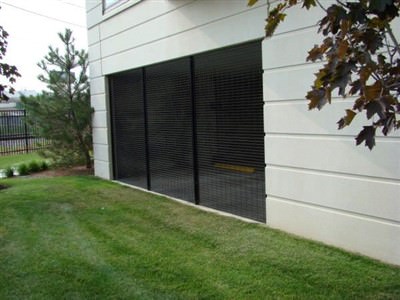

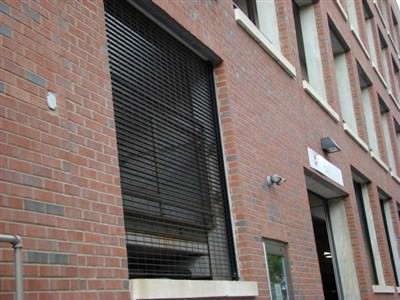

Grotto® 1" x 5/64" 1-21/32" x 5-3/16"
Shield® 1" x 5/64" 1-21/32" x 1-3/4"
Metro® 1" x 1/8" 2-7/16" x 5-3/16"
Blockade® 1-3/16" x 5/32" 2-7/16" x 5-3/16"

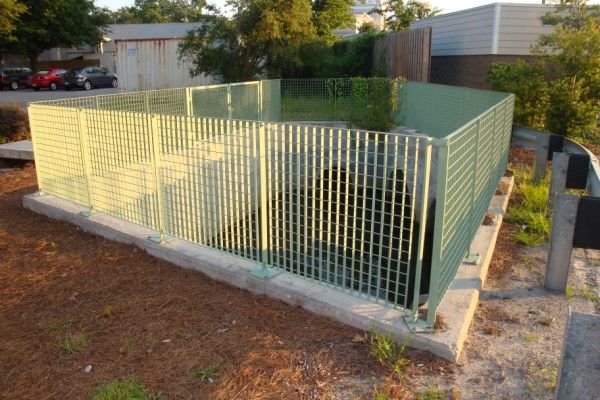

Lattice 1" x 1/8" 2-7/16" x 2-19/32"
Stadium® 1" x 1/8" 3-15/16" x 3-15/16"
Trellis 1" x 1/8" 4-7/8" x 5-3/16"

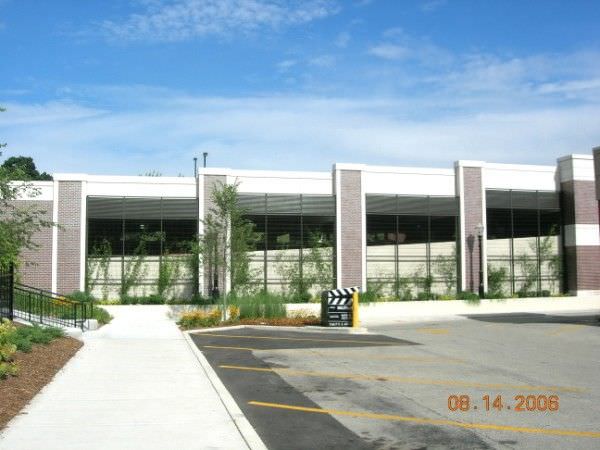

Screening is manufactured using extruded aluminum fixed louvers or hot dipped galvanized steel louvers in Ametco's Eclipse®, Venetian®, or Phoenix® design. The Eclipse® is ideal for horizontal applications with either 80% or 100% direct visual screening. Venetian® offers either horizontal or vertical application with 100% visual screening and Phoenix® is used either horizontally or vertically and is the strongest of the three designs.
Louvers are powder coated in one of our 15 standard colors. This process provides durability and allows Ametco® screens to withstand exposure to the elements.
