Ametco’s Welded Wire Security Fences

Welded wire fencing systems take into account today’s increased need for security. Ametco's Welded Wire fencing is a mechanically sturdy and durable products that also meet all visual criteria. Depending on the requirements imposed by the object to be protected and on your individual demands, you may choose from a multitude of fence types at Ametco. During preliminary consideration, it is important to correctly assess the level of your security needs.


Ametco’s standard systems are characterized by the use of environmentally friendly materials. For all products, Ametco uses galvanization and powder coating for up-to-date corrosion protection. A wide range of 15 standard colors is available to harmonize with any environment.

Review the following panel designs. Each welded wire fencing panel measures 2" x 8" mesh with various thickness.

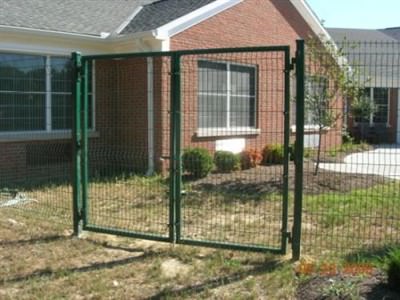

  • Amopanel Design - 3/16" dia. wire with folds for strengthening

  • Fiesta Design - 1/4" vertical wire and two 5/16" horizontal wires

  • Gala Design - 1/4" vertical wire and 14 gauge 3/8" x 3/4" horizontal channels

  • Guardian Design - 1/4" vertical wire and two 5/16" horizontal wires.

  • Park Design - 1/4" vertical wire and two 1/4" horizontal wires.


Downloads
8 page pdf of Welded Wire Fencing and Gates
8 page PDF: Brochure features Swing, Cantilever, V-Wheel Roller, Security gates in aluminum, steel and stainless steel and galvanized. Panels styles, CAD darwings and color options are covered.
8-page PDF: Highlights the numerous panel designs, configurations, CAD drawings and installation of Ametco's fence products.
 Master Spec for Welded Wire Fencing

Panel Designs
Welded wire 2" x 8" mesh, 3/16" dia. wire with folds for strengthening
Welded wire with 2" x 8" mesh, 1/4" vertical wire and two 5/16" horizontal wires
Welded wire 2" x 8" mesh, 1/4" vertical wire and 14 gauge 3/8" x 3/4" horizontal channels
Welded wire 2" x 8" mesh, 1/4" vertical and two 5/16" horizontal wires.
Weled wire 2" x 8" mesh with 1/4" vertical and two 1/4" horizontal wires
