Saturn Design

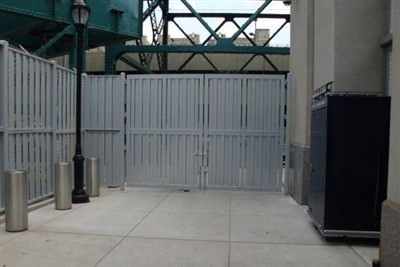

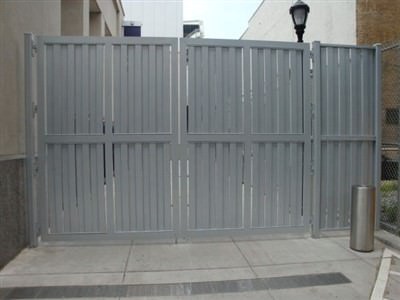

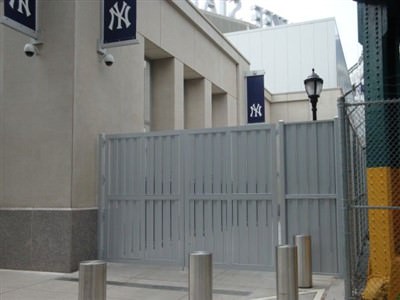

Ametco’s Saturn Deign Aluminum Fencing is manufactured from extruded aluminum special shaped tubes that can run either vertically or horizontally. This design is Ametco’s “board on board” only manufactured from aluminum tubes, Saturn Design Aluminum Fencing is designed with two alternating rows of 4” tubes with no gape between the tubes. The aluminum tube is a special shaped 1/2” x 4” tube. Saturn Design weight is 3.00# per sq. ft. The sharp clean lines of the Saturn Design are powder coated prior to assembly which allow the choice of any of Ametco’s 15 standard colors or combination of colors. Special colors to match institutions standard colors are available. This helps the Saturn Design Aluminum Fence to fit in at school, sport complexe or any other facilities that require special color or combination of colors.

  Ametco’s aluminum fencing system is 100% manufactured in the United States.
Made In USA

View Ametco's 20 Year Warranty

Bookmark and Share
CAD Drawings
Please click on thumbnail below to load a larger image:
Saturn Design Saturn Design
Downloads
Many of Ametco's Fencing and Gate System products can help builders qualify for LEED green building credits.
8 page PDF: Brochure features Swing, Cantilever, V-Wheel Roller security gates in aluminum, galvanized steel and stainless steel. Panels styles, CAD drawings and color options are covered.
4 page PDF: Details the four styles of fixed louver fencing systems providing 80% or 100% direct visual screening. Perfect solution  for architectural and security applications.

Panel Designs
Aluminum or stainless steel louvers with 80% visual screening.Aluminum weighing 1.77# and Stainless weighing 5.00# per sq. ft.
Aluminum or stainless steel louvers with 100% visual screening.Aluminum weighing 2.00# and stainless weighing 5.75# per sq. ft.
Fixed steel louvesr with 80% visual screening. The weight per square foot is 2.84#
Fixed steel louvers with 100% visual screening. The weight per square foot is 3.50#
Extruded aluminum with 100% visual screening weighing 3.5# per sq. ft.
Strongest aluminum fixed louvers in 80 & 100% Screening.80% visual screening weighing 3.30# per sq. ft. and 100% visual screening weighing 4.00# per sq. ft.
Two rows of 4" vertical special shaped tubes with np gape between tubes. The weight per sq. ft. is 3.00#
